Precision machined parts for rail systems
Rail system parts demand long service life and dimensions that do not drift; when the same part is reordered years later, it has to come out to the dimensions of the first batch. We machine aluminium mounting blocks, brackets, connecting bars and shaft-and-joint elements on our machining centres and document them with CMM inspection. Rail profiles, carriage blocks and roller carriages, as well as steel rotating parts such as brake discs, toothed rings and flanged bearing rings, come off the same machines. The black surface coating is applied by an approved supplier; coating thickness is measured and a certificate of conformance is delivered with the parts.
Mounting blocks and brackets
8 part types
-

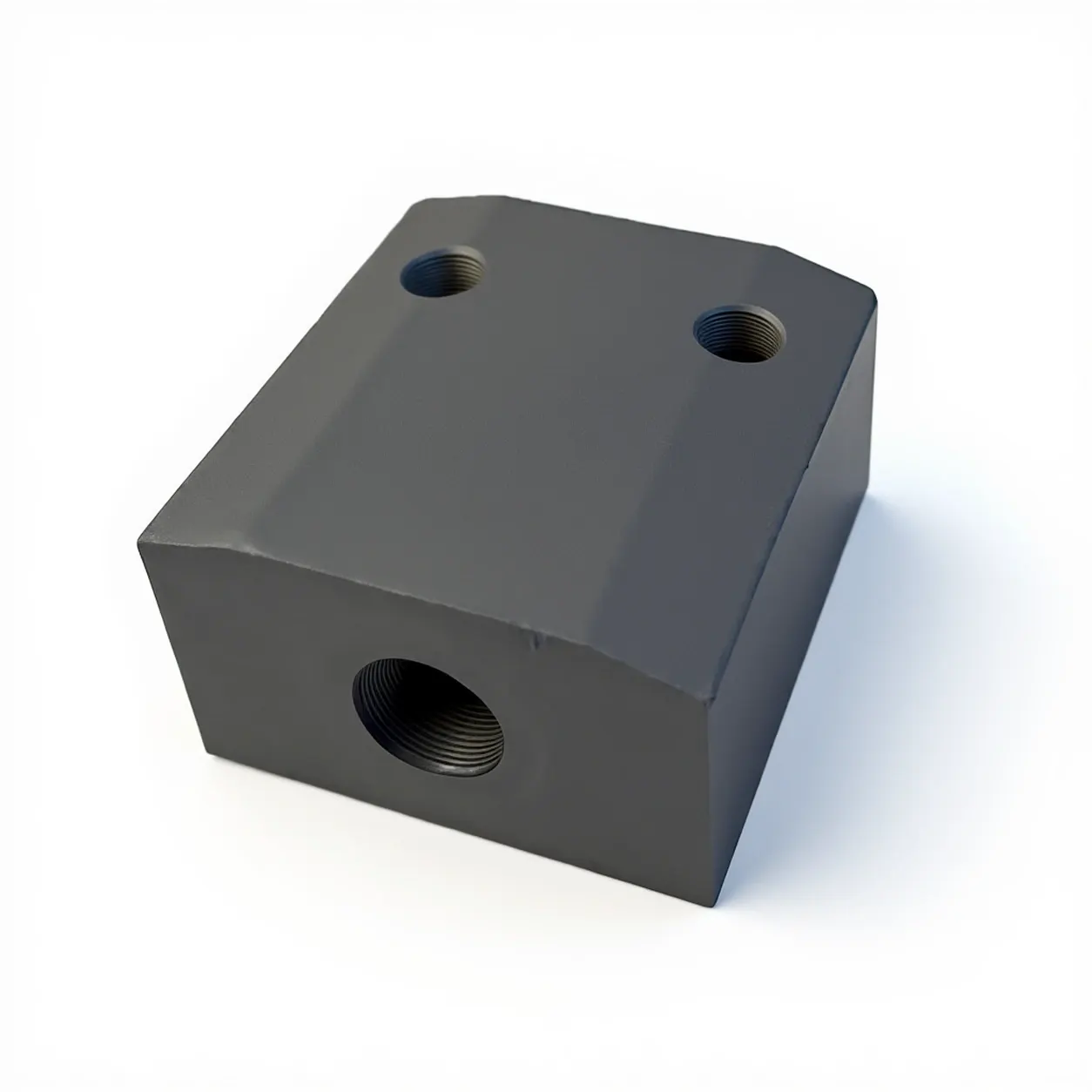

Drilled block
Black-coated aluminium, threaded centre hole and two mounting holes
-

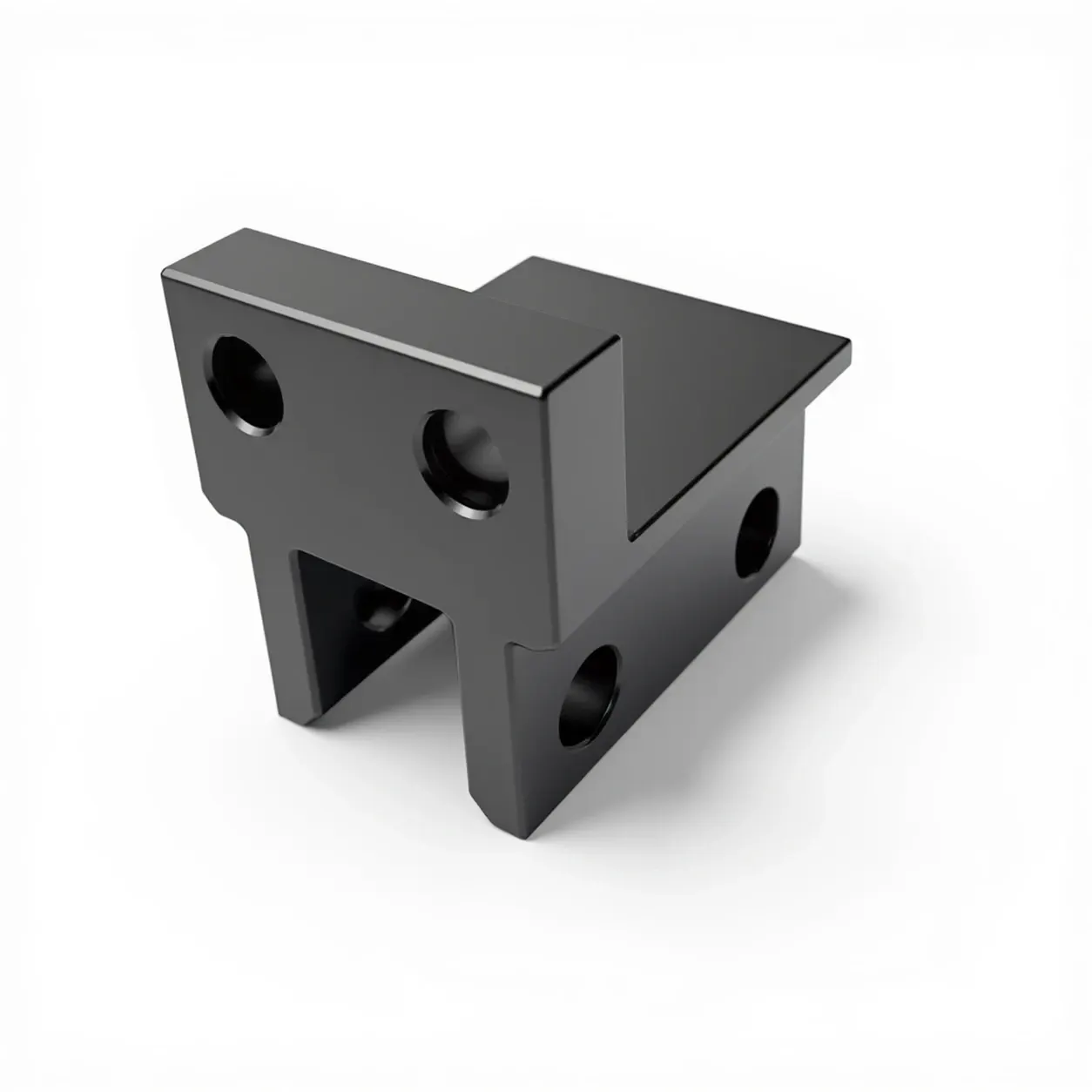

Stepped mounting block
Black-coated aluminium, stepped body, multi-directional mounting holes
-

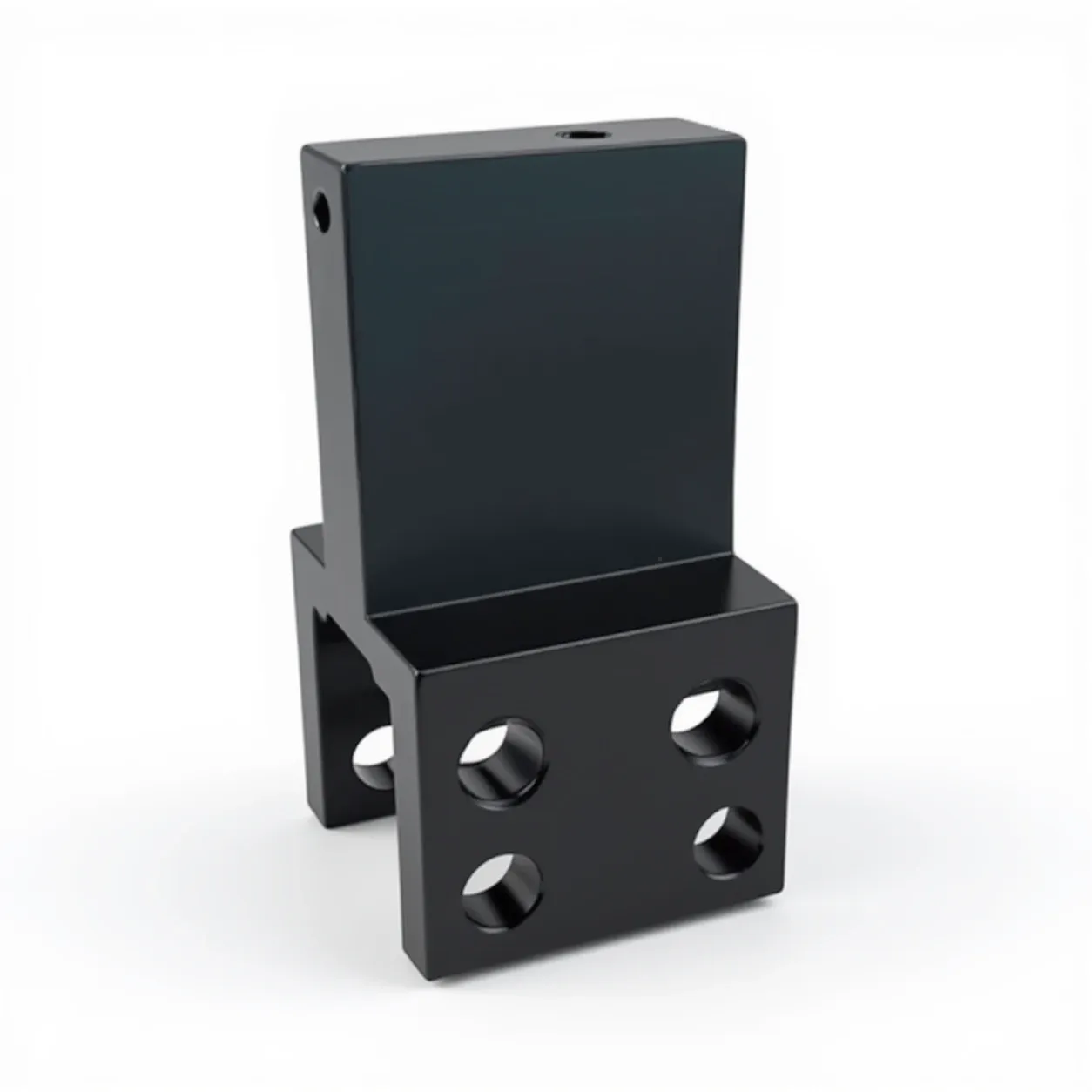

T mounting block
Black-coated aluminium, upright plate and four-hole base
-

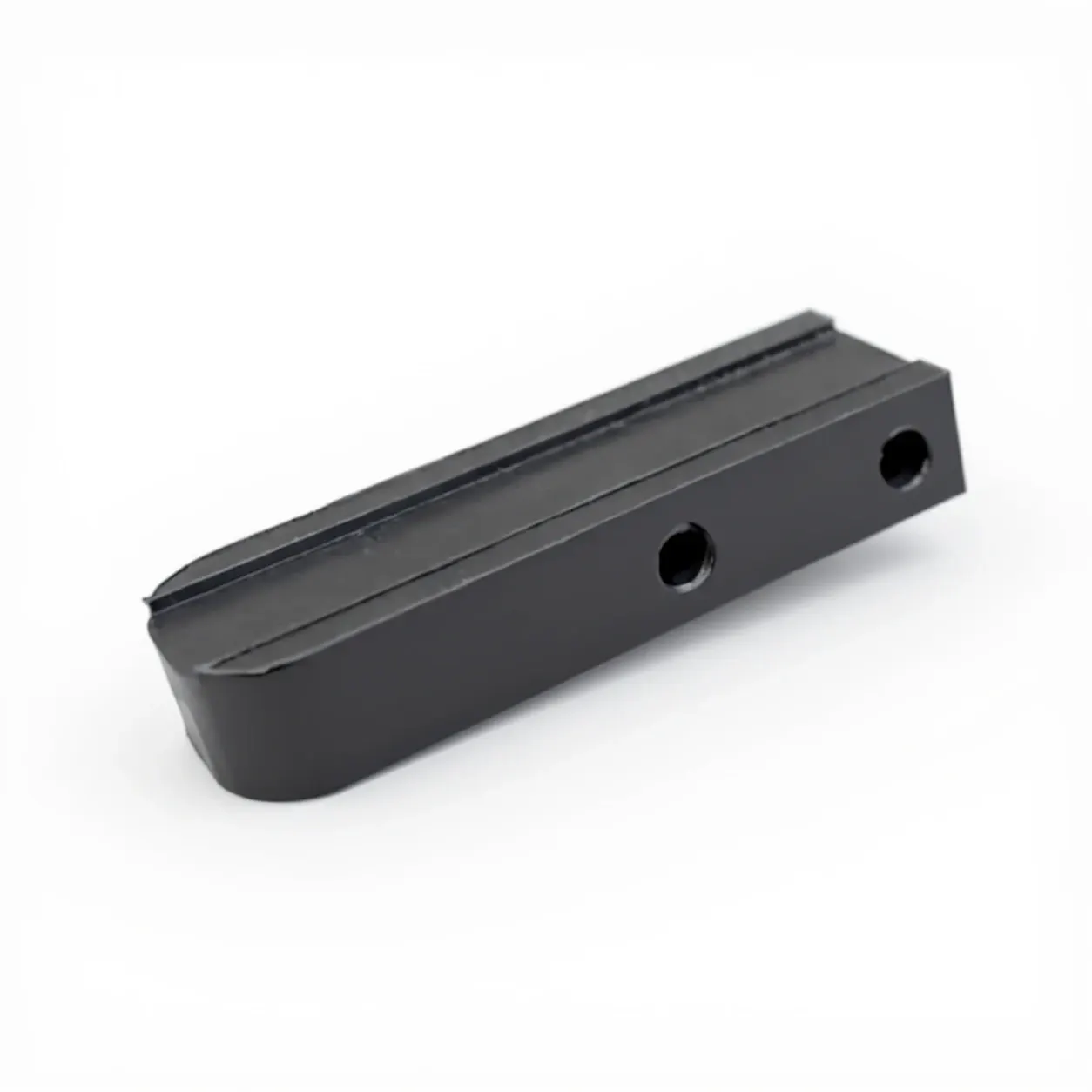

Rail block
Black-coated aluminium, grooved profile, two connection holes
-

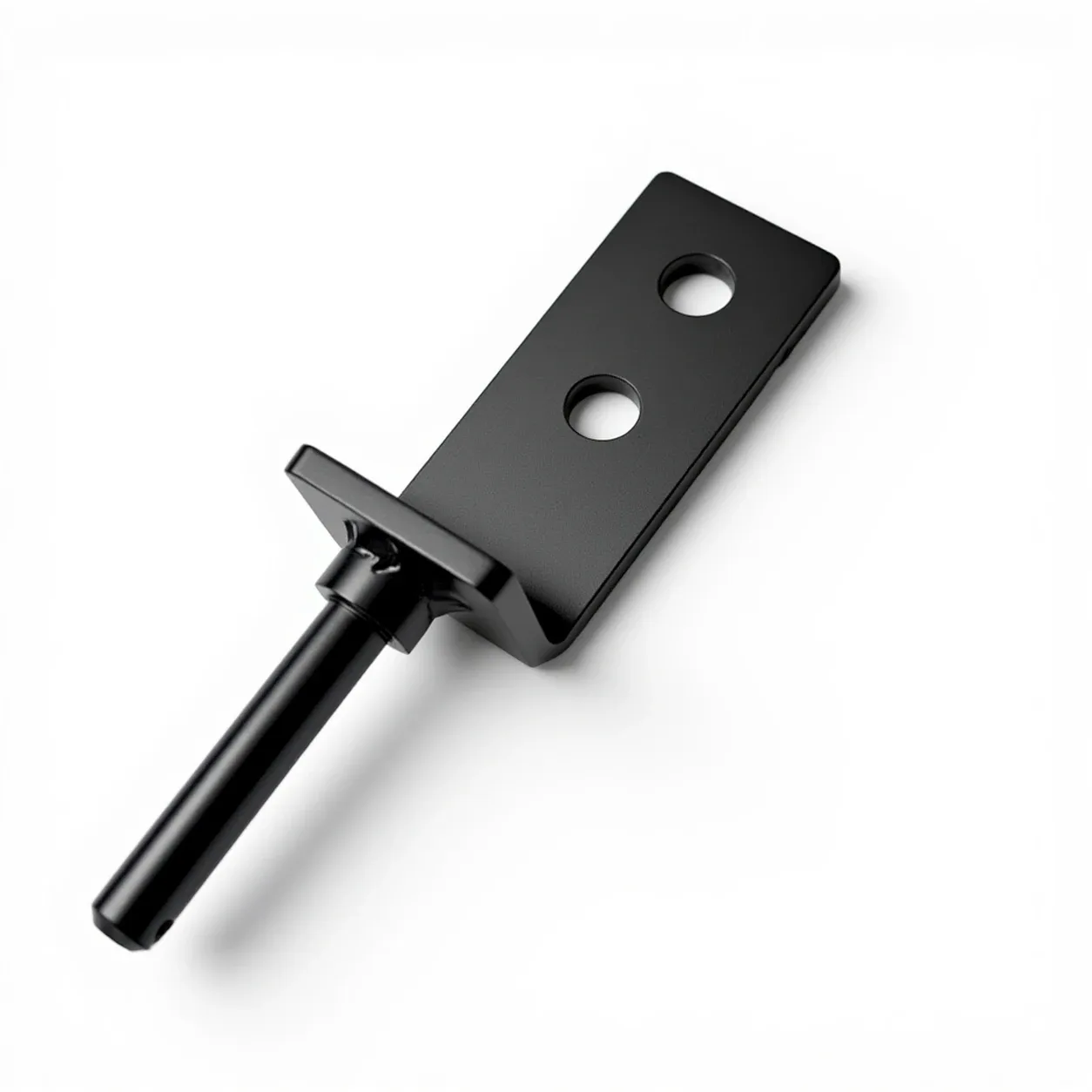

Mounting bracket with pin
Black-coated aluminium, two-hole plate and cylindrical pin
-

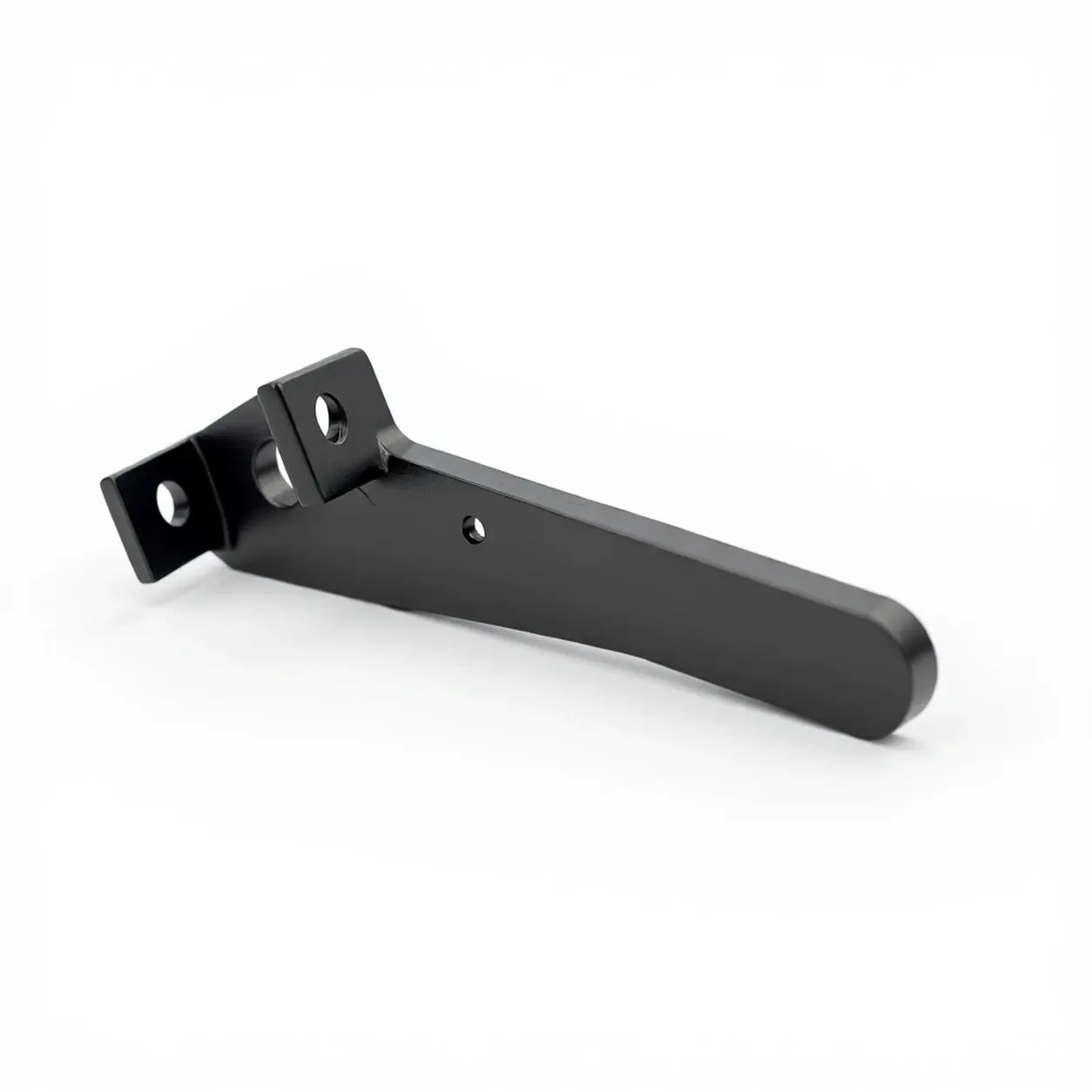

Arm bracket
Black-coated aluminium, angled arm and drilled connection end
-

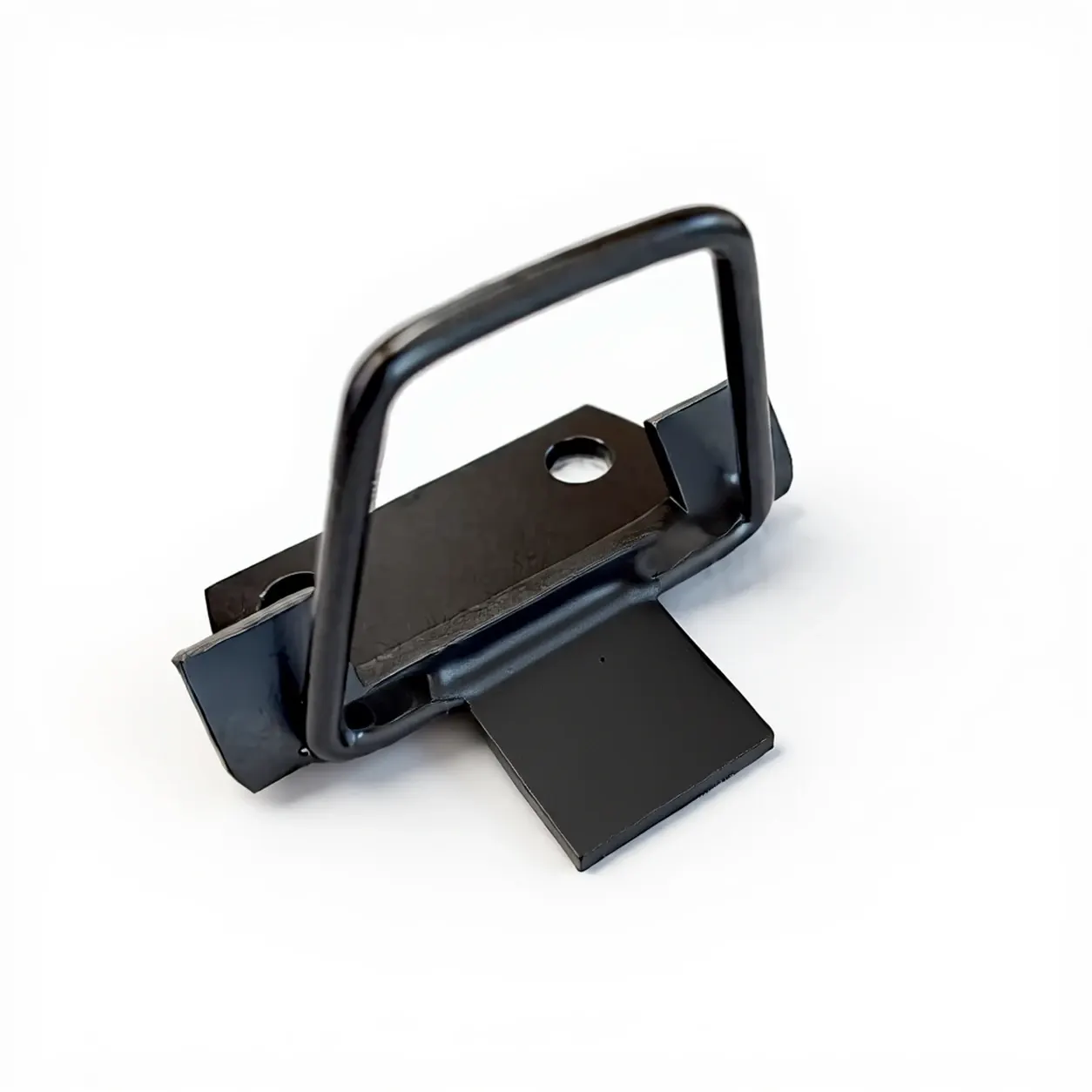

Connecting bracket with handle
Black-coated aluminium, base plate and curved handle
-

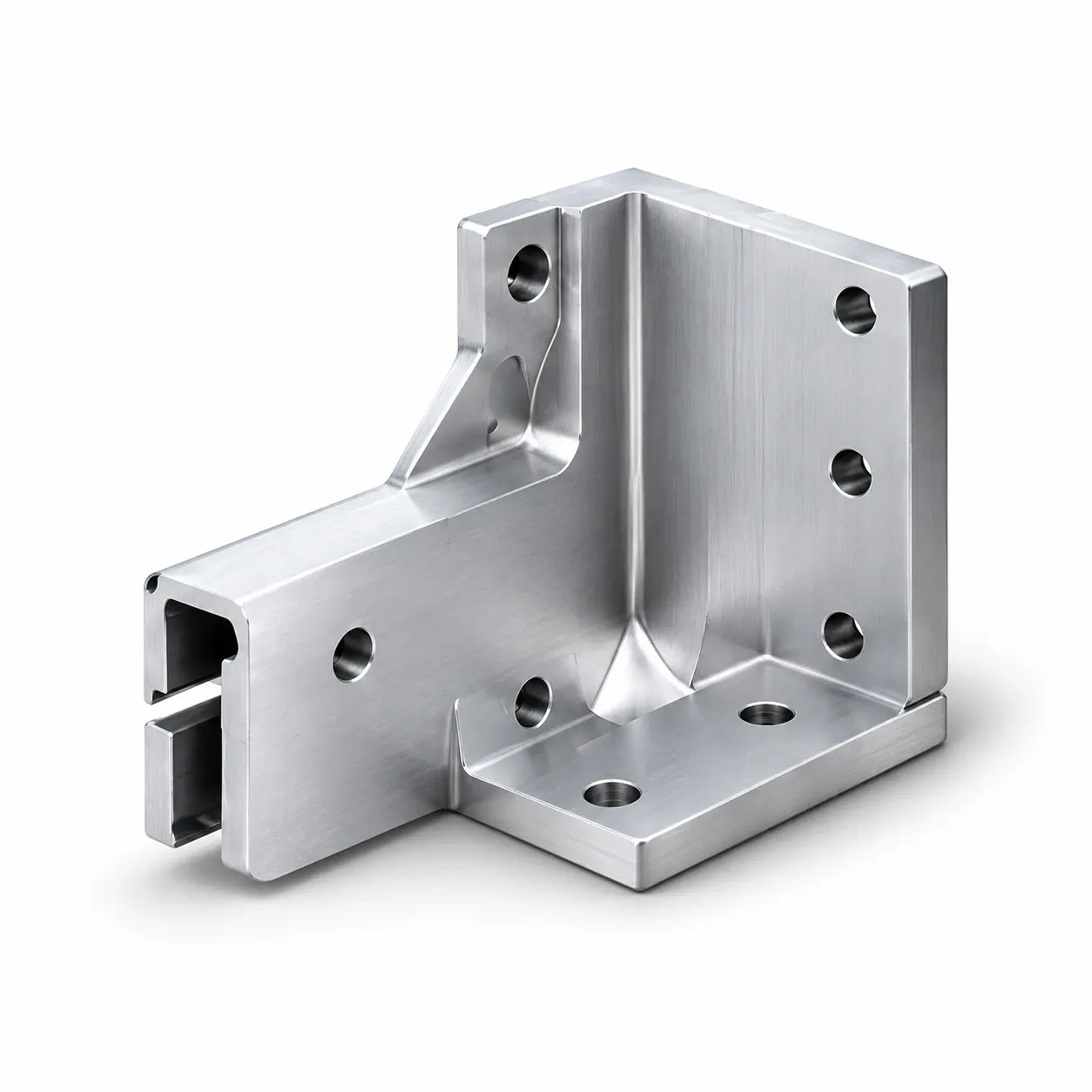

Corner mounting bracket
Machined aluminium, upright body, support rib and rail slot
Rail profiles and carriage elements
4 part types
-

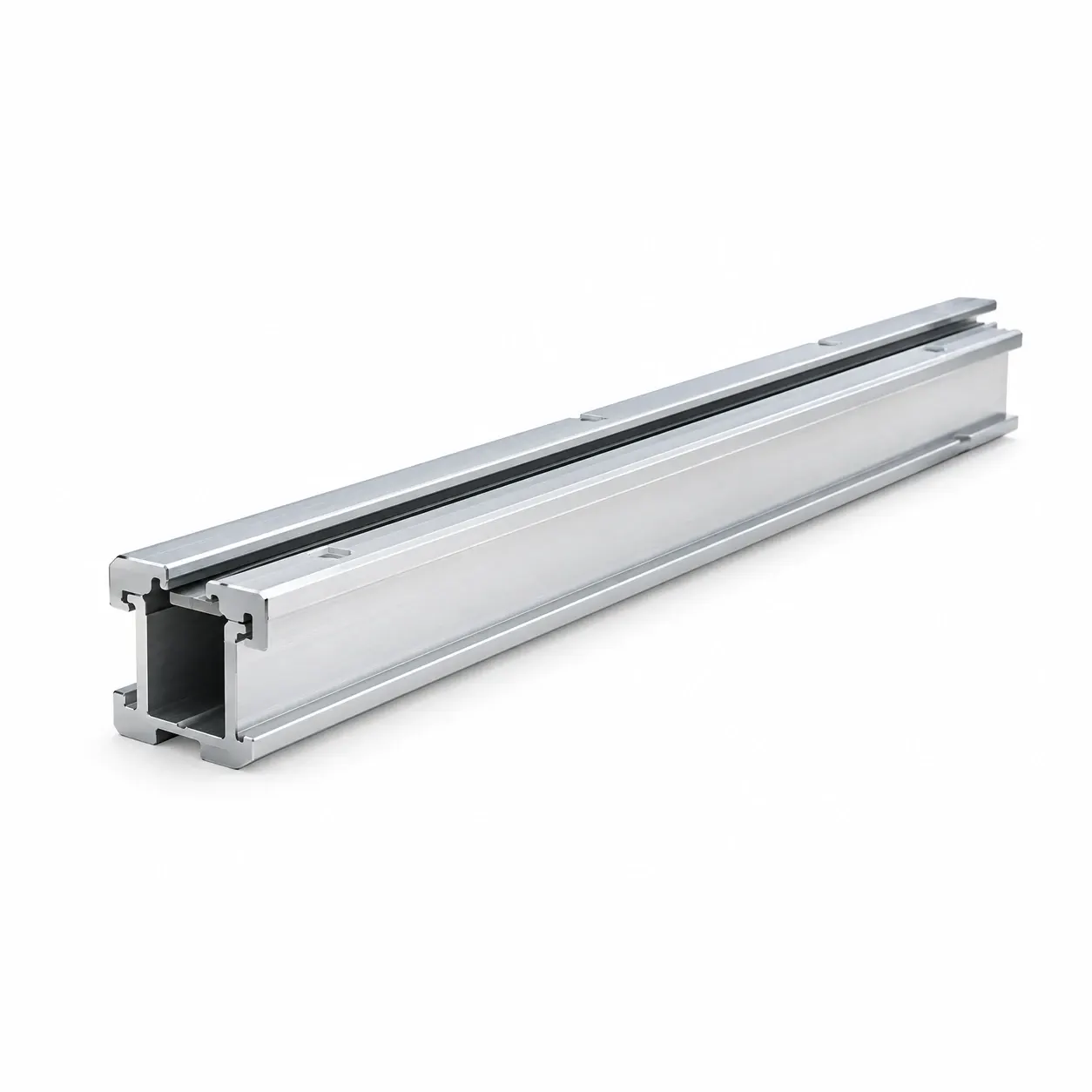

Aluminium rail profile
Extruded profile, machined top channel and slide face, mounting pockets
-

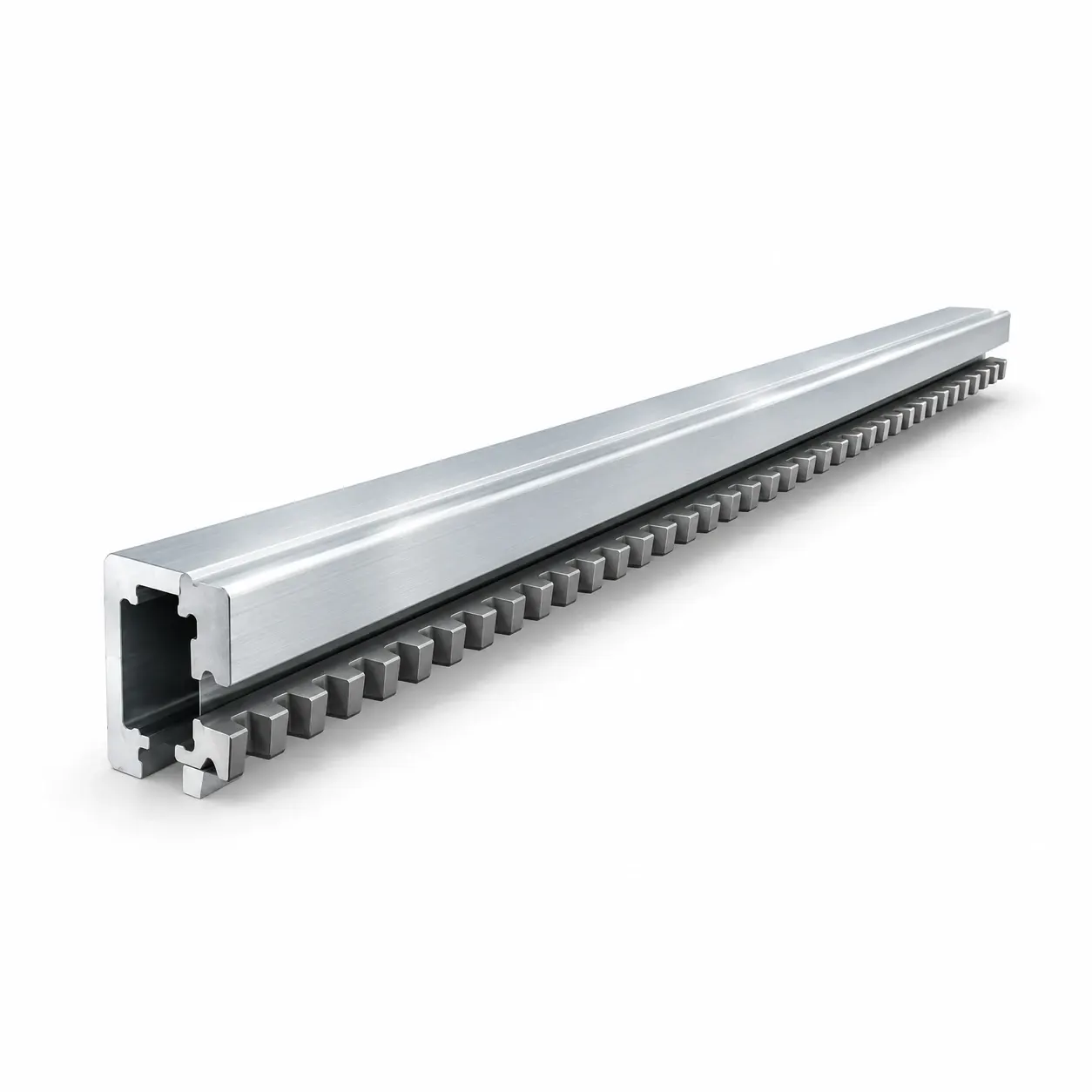

Rack rail
Aluminium profile, rack teeth on the side face, grooved section
-

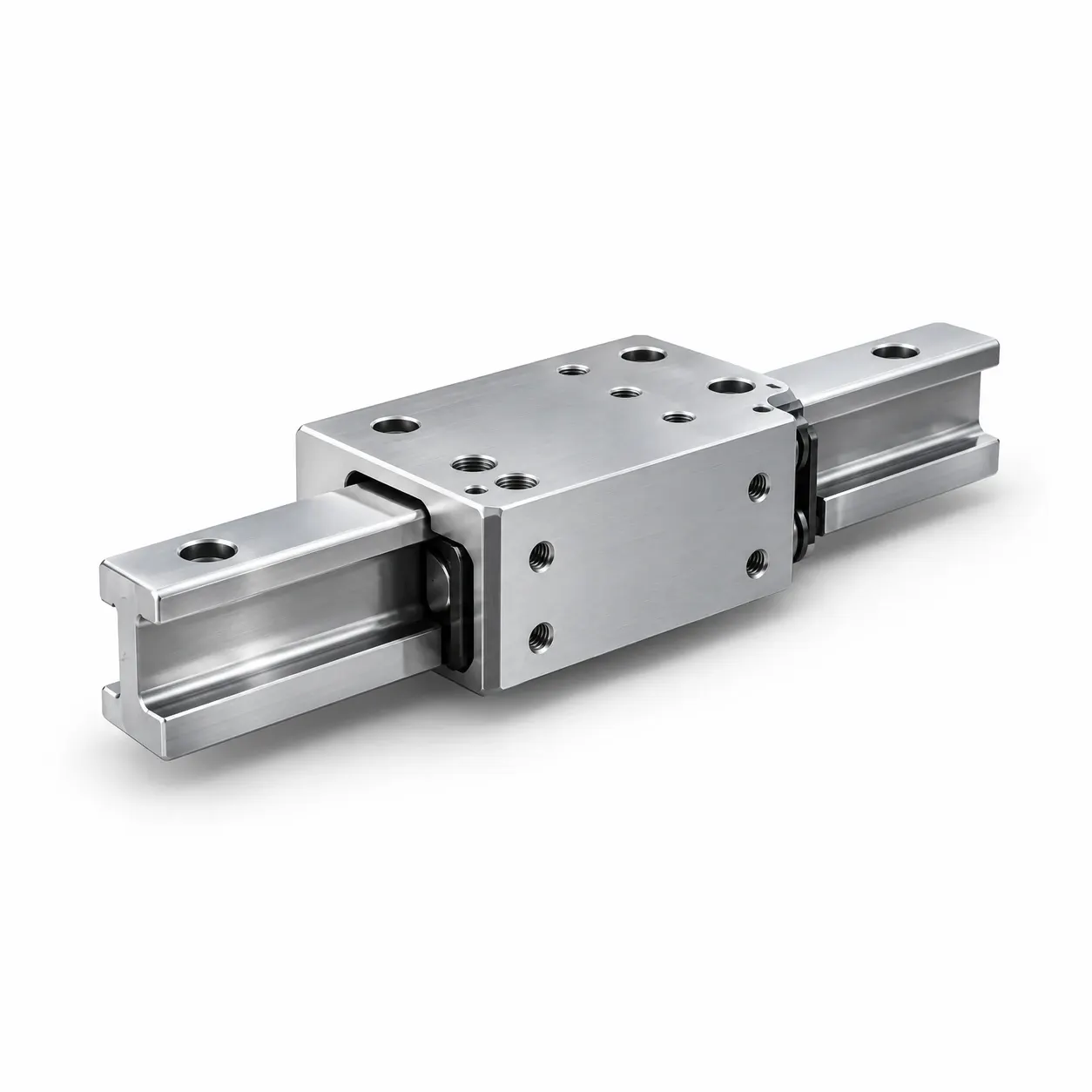

Linear rail and carriage block
Ground steel rail, carriage block with tapped holes, end wipers
-

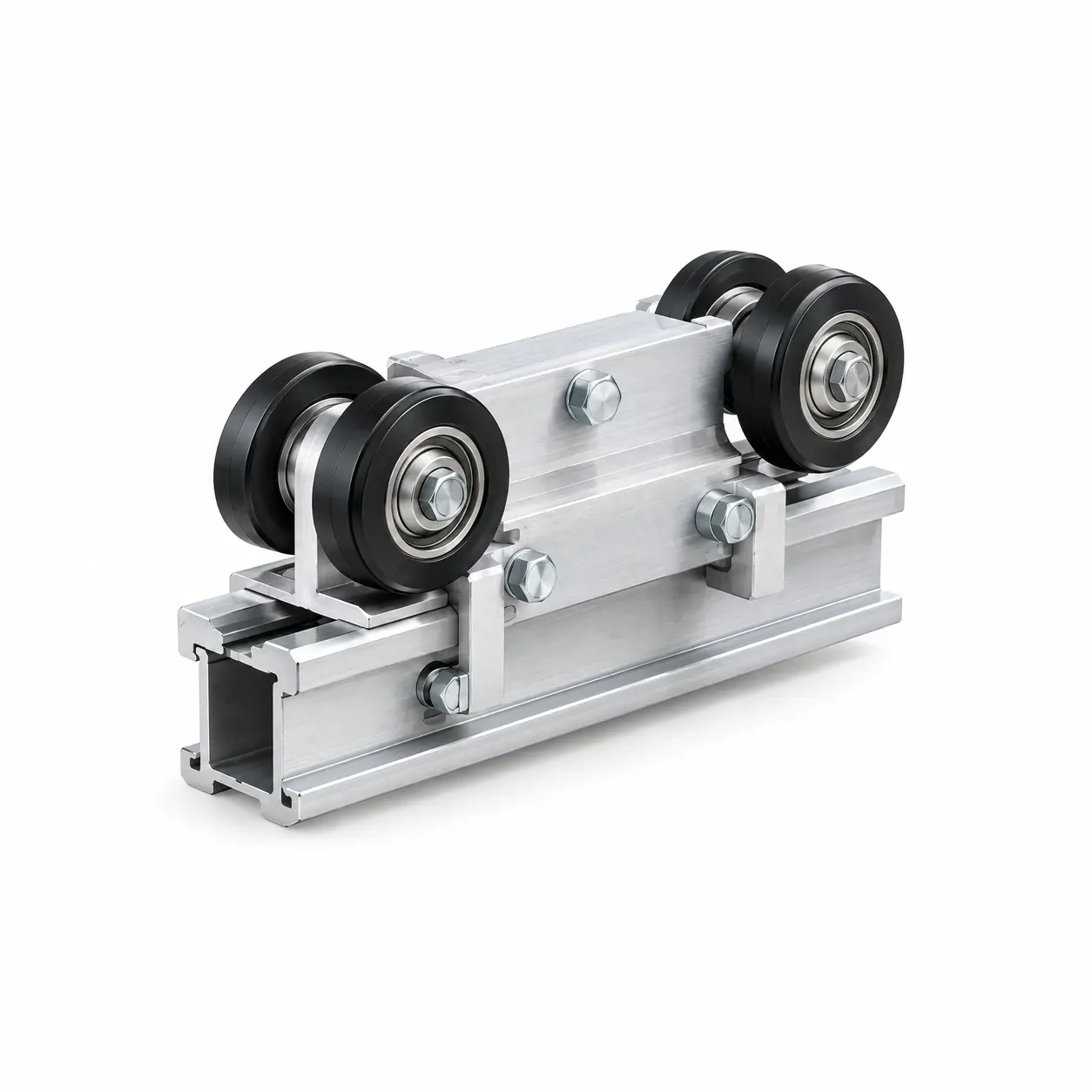

Roller carriage
Aluminium body, four bearing-mounted rollers, running on a profile rail
Gear, disc and ring parts
3 part types
-

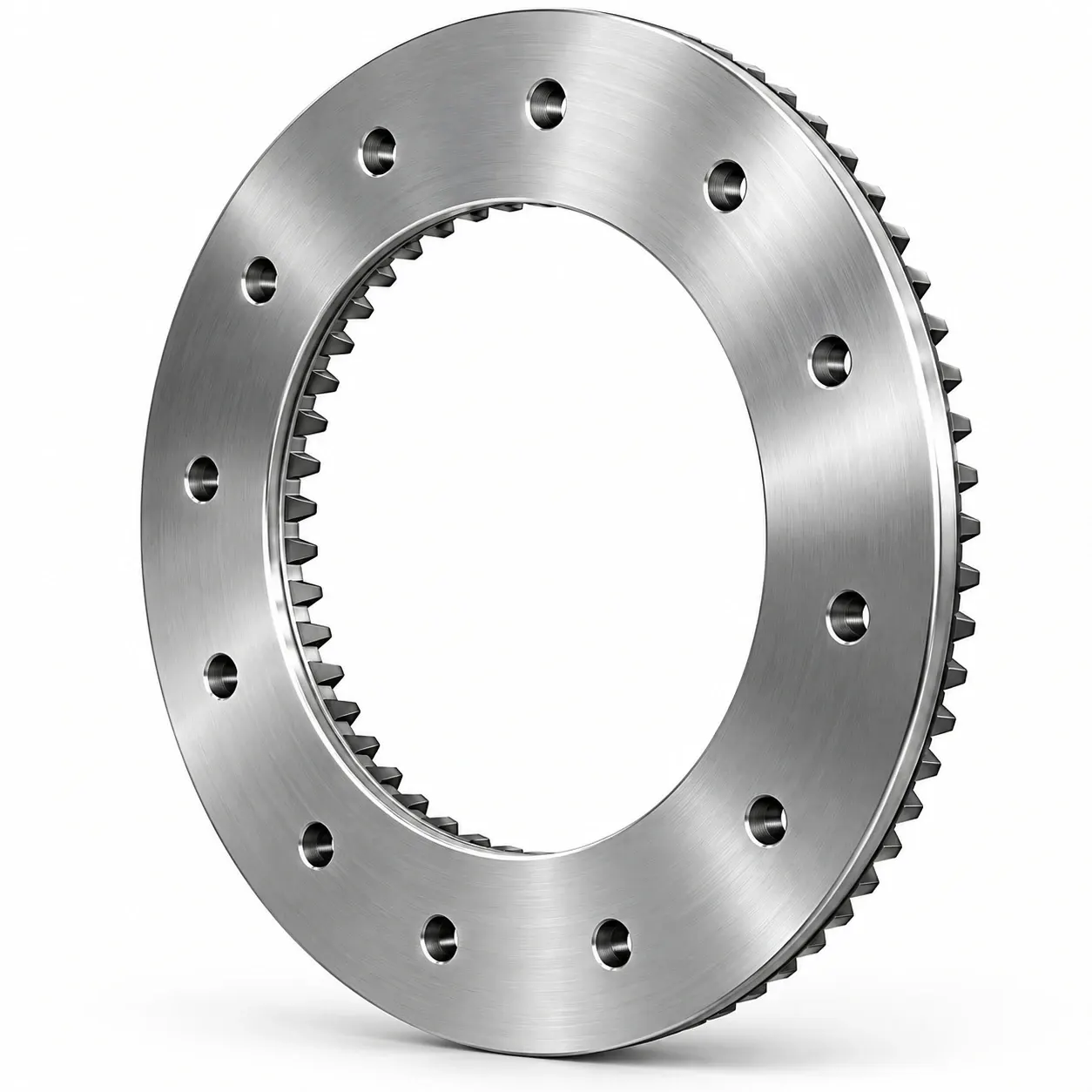

Toothed ring
Machined steel, internal and external teeth, bolt holes on the flange face
-

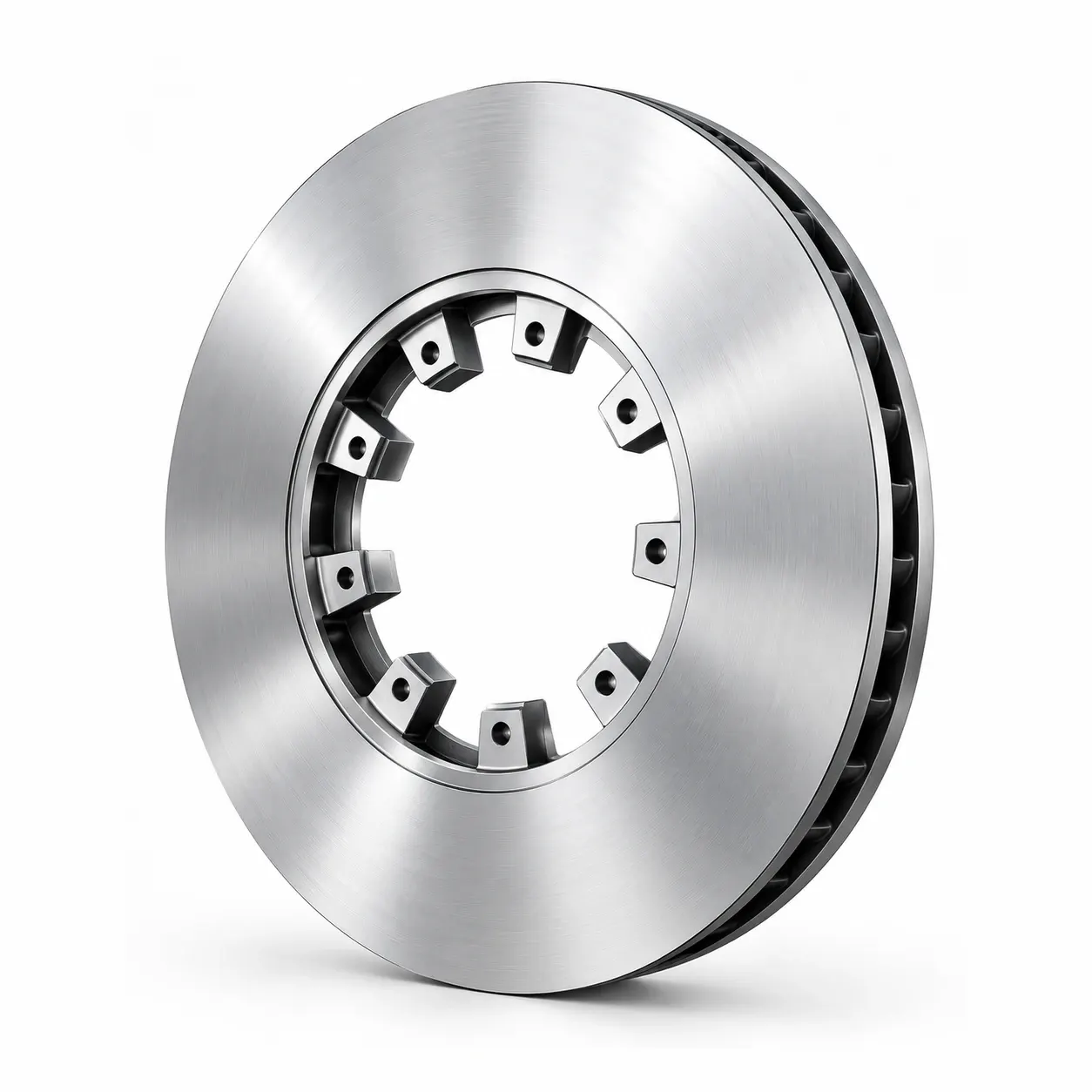

Ventilated brake disc
Ground friction surface, internal cooling vanes, drilled mounting lugs
-

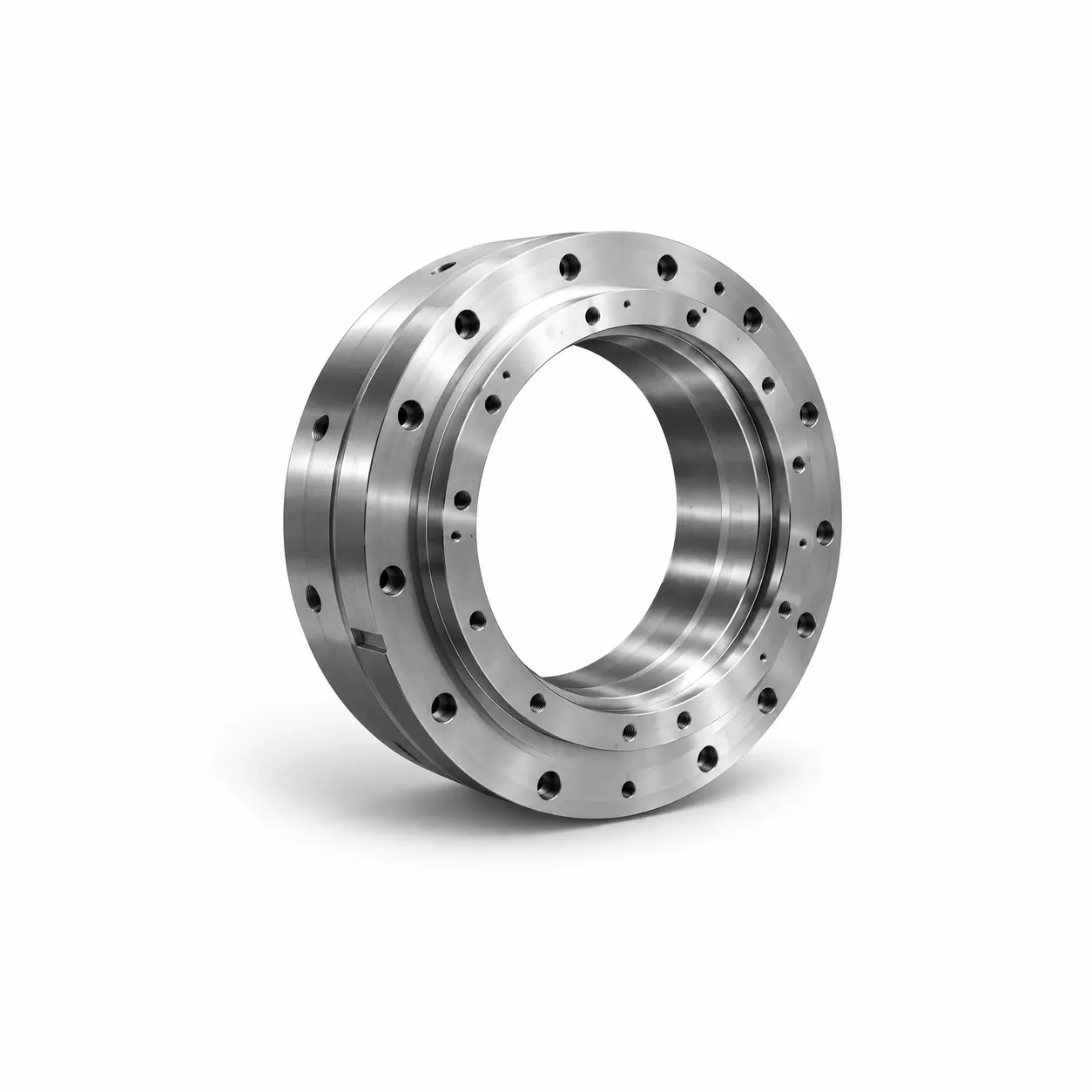

Flanged bearing ring
Machined steel, stepped flange, circumferential bolt and tapped holes
Connecting bars and rods
4 part types
-

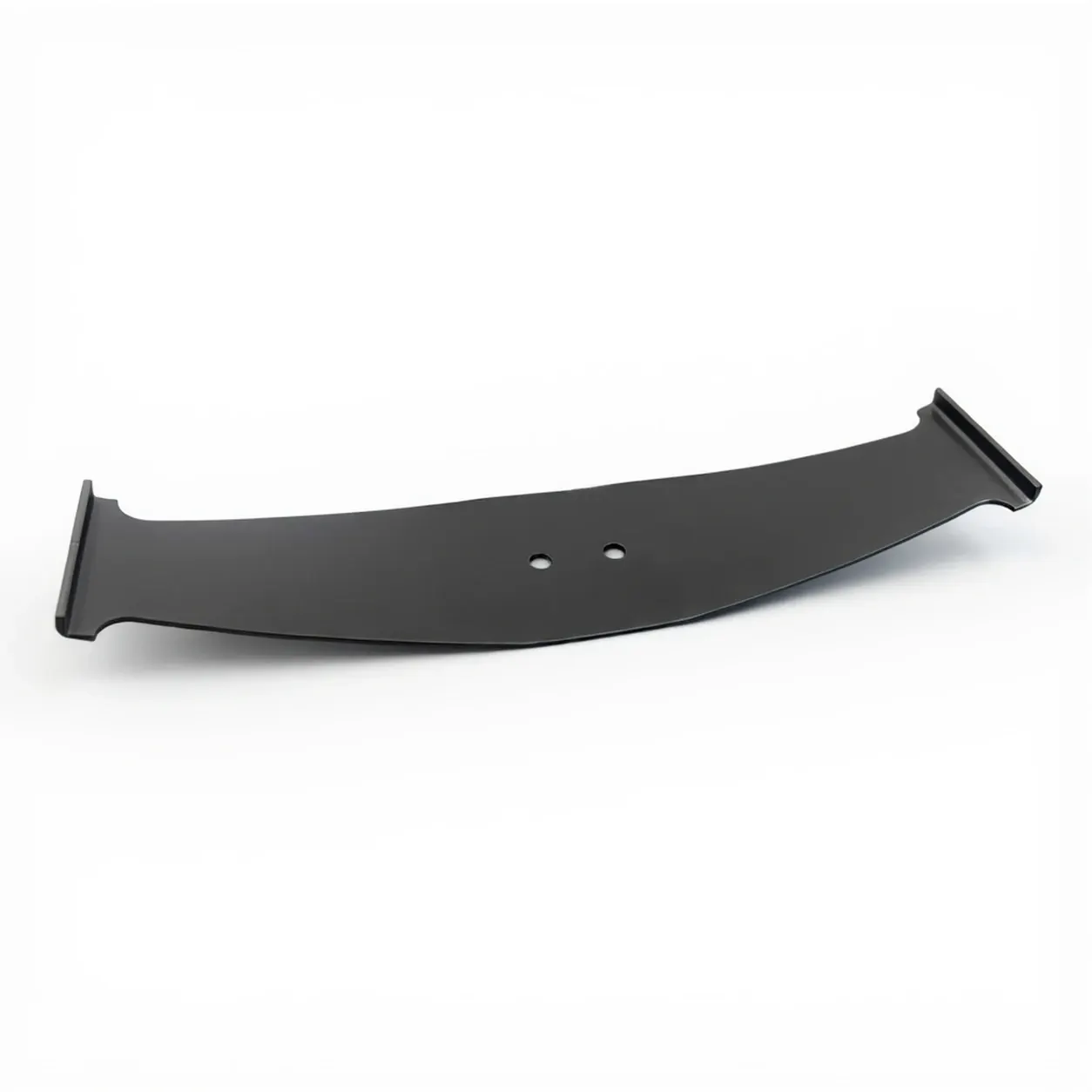

Curved connecting bar
Black-coated aluminium, slightly curved, two holes
-

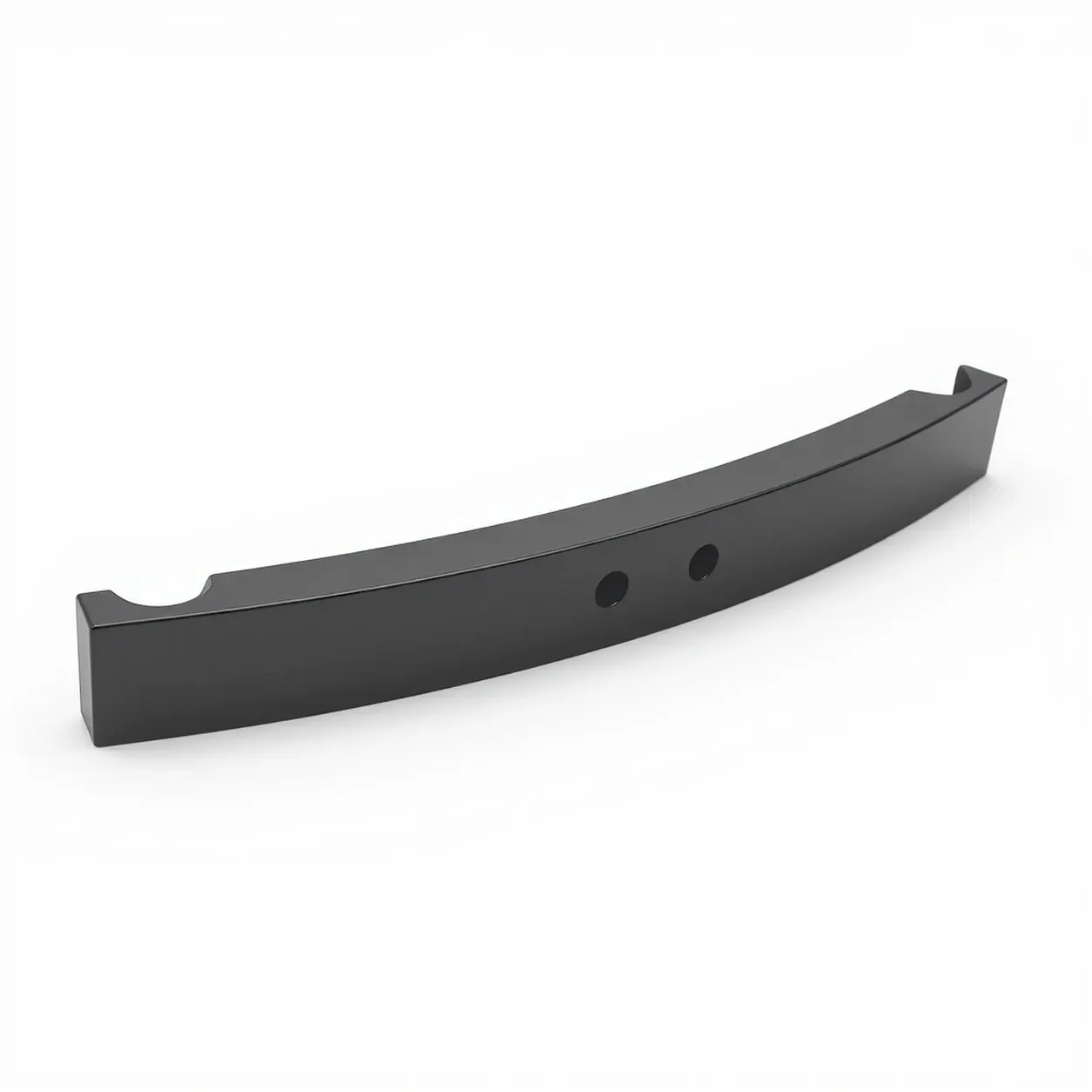

Curved profile rod
Black-coated aluminium, curved rectangular section, two holes
-

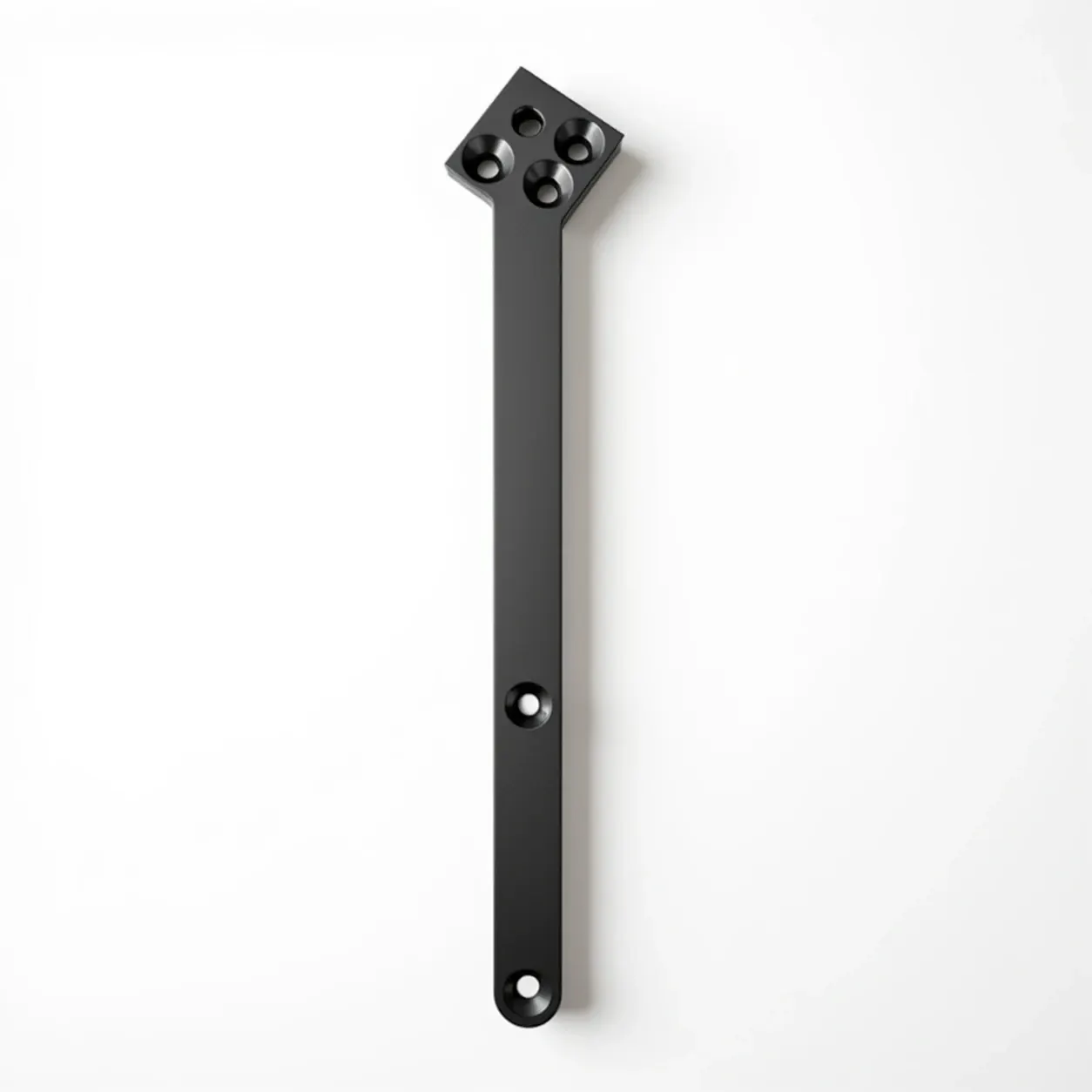

Long connecting bar
Black-coated aluminium, slim long bar, multi-hole connection end
-

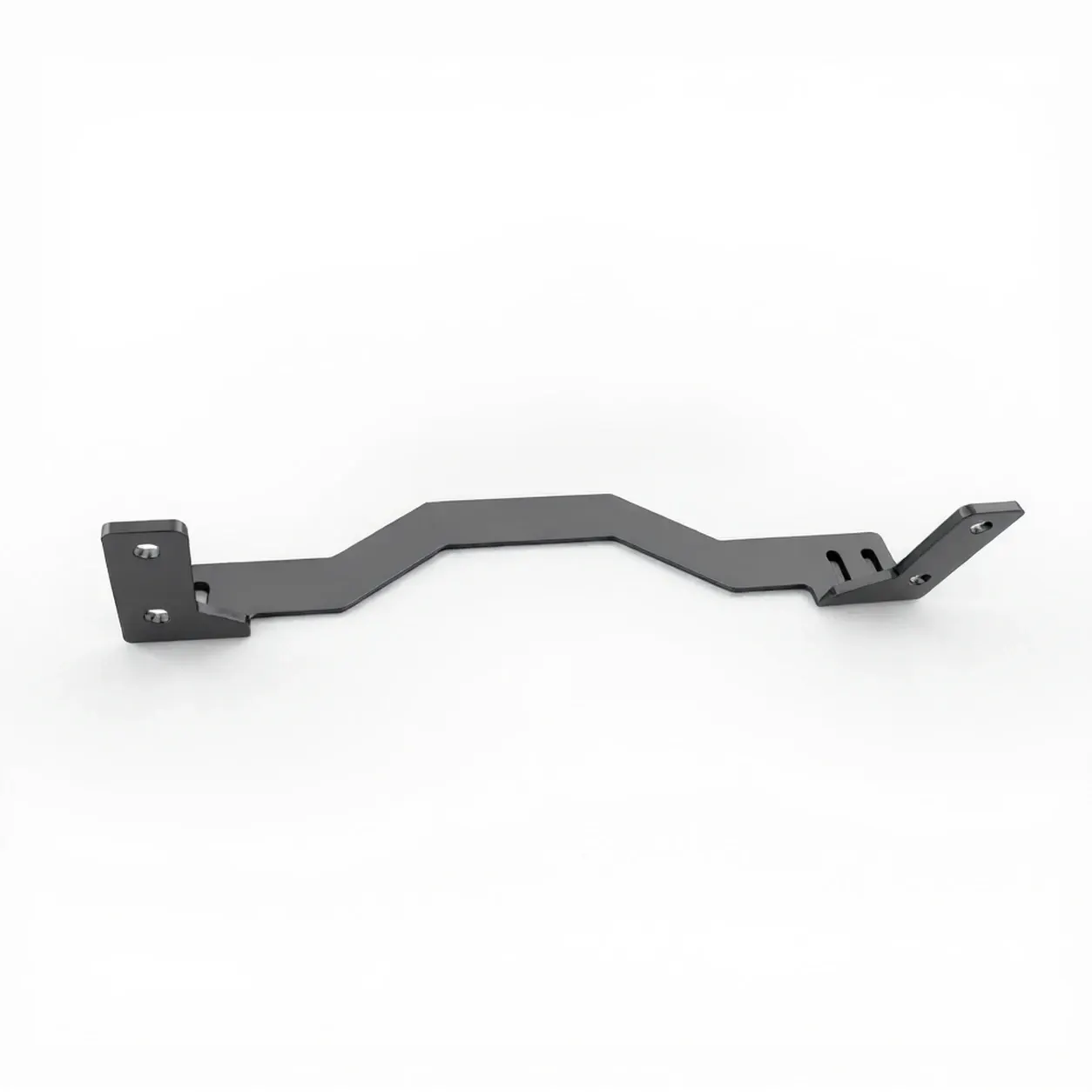

Z connecting rod
Black-coated aluminium, Z-shaped, three connection points
Shaft, joint and spring elements
4 part types
-

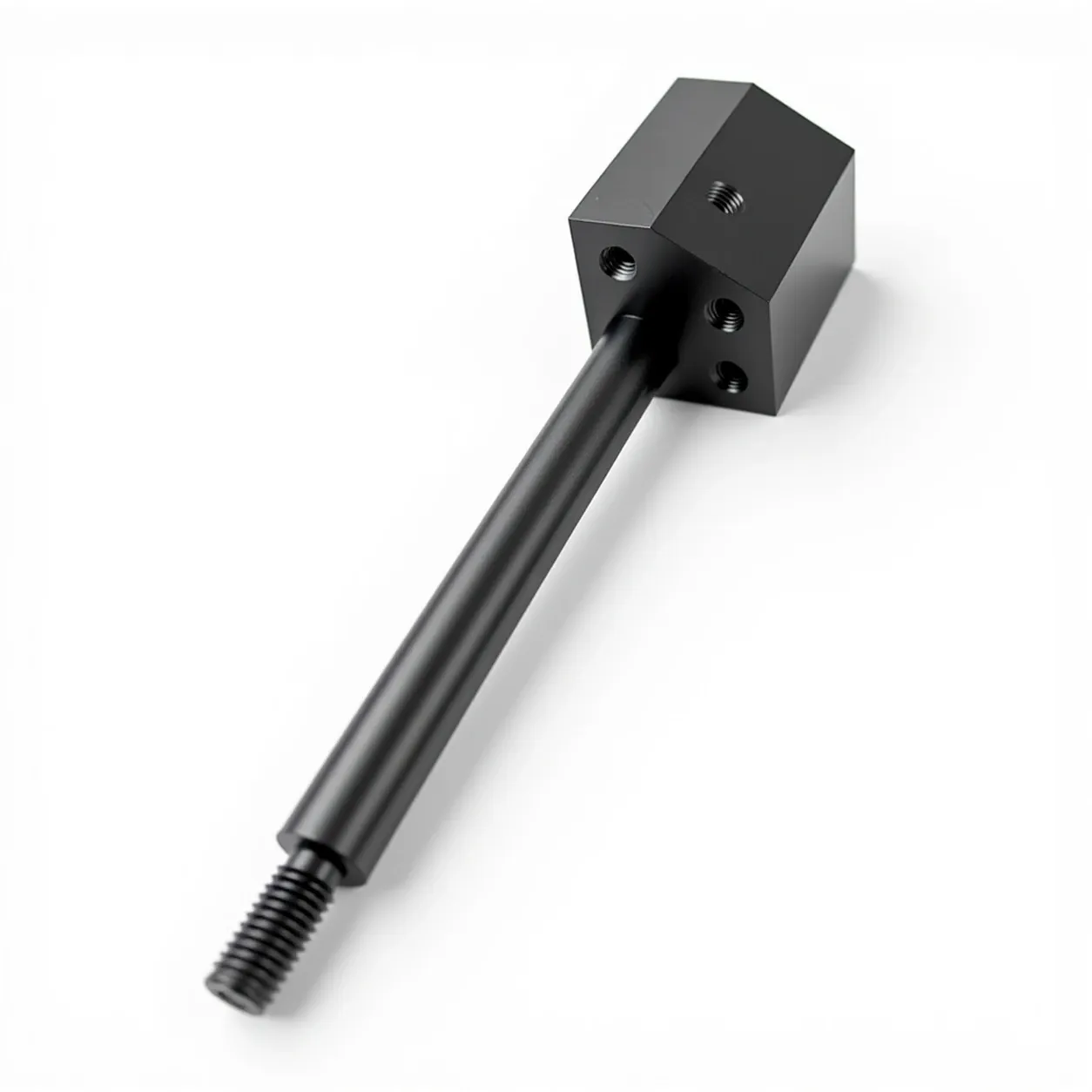

Shaft with body
Black-coated aluminium, threaded end and drilled square body
-

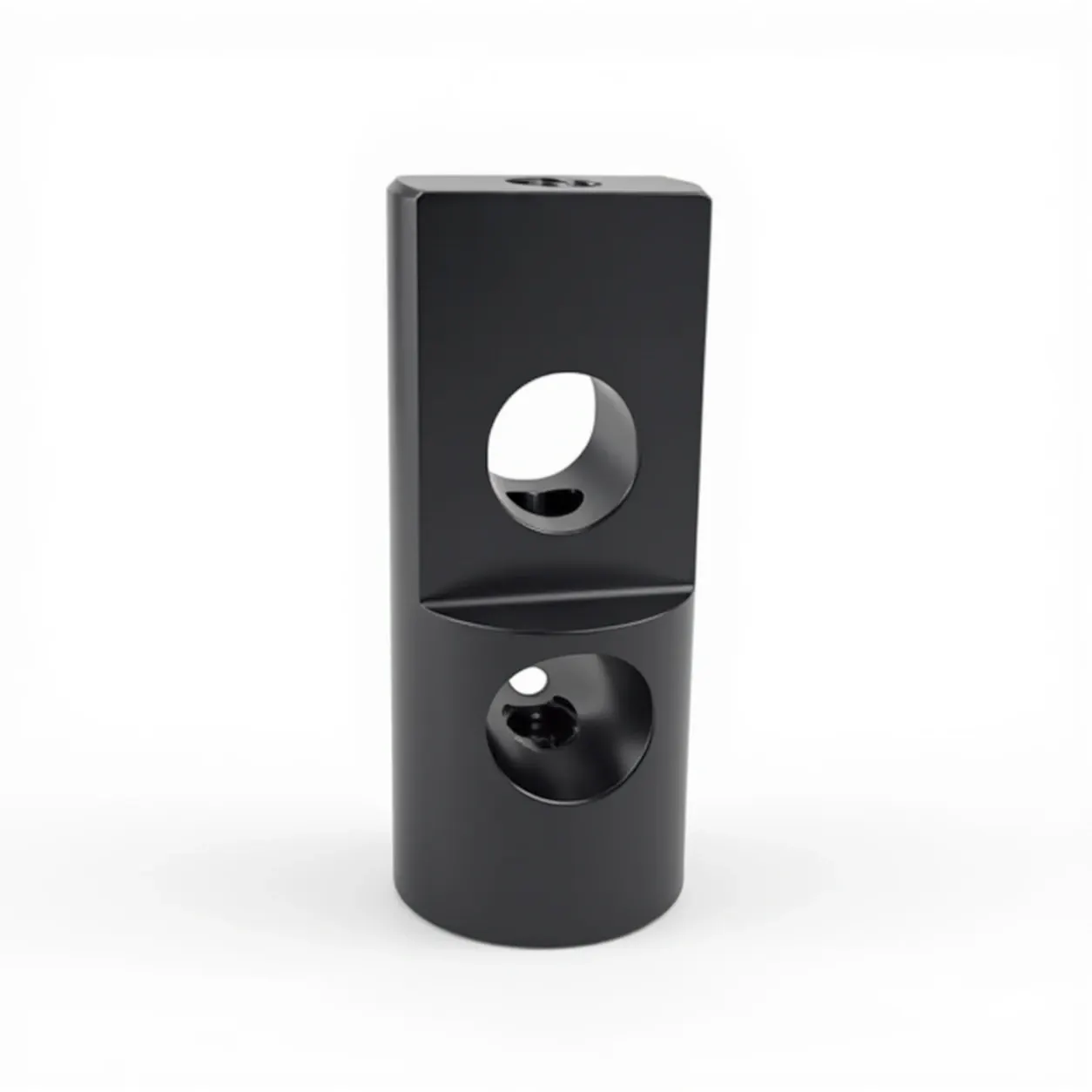

Cylindrical joint block
Black-coated aluminium, cylindrical body, two cross holes
-
Extension spring
Black-coated extension spring with hooked ends
-
Threaded spacer
Black-coated aluminium, hexagonal body, external thread
Looking for a part that isn’t listed?
Most of the rail system parts we make are customer-specific and not shown here. Send us your drawing.
STEP · DWG · PDF
